50 / 77 / 100 mm Extruders

Pilot- and production-scale co-rotating twin-screw extrusion — the scale-up path from micro-batch development on the ZE platform.

Request a Quote
cGMP316L
Three-Tec 50 mm twin-screw extruder for pilot and production scale compounding

01 / 04 — OVERVIEW

The 50 / 77 / 100 mm extruder family extends the Three-Tec platform from laboratory micro-batches to pilot and production throughput. The same co-rotating twin-screw geometry, modular barrel segments, and Siemens control architecture used on the ZE5 through ZE12 carry forward, preserving screw-configuration knowledge and process parameters developed at micro scale. These systems serve pharma, polymer, food, and specialty-chemical producers who have validated formulations on Three-Tec micro extruders and need a geometrically predictable scale-up path without re-qualifying on third-party equipment.

02 / 04 — FEATURES

Pilot and production scale: 50, 77, and 100 mm screw diameters
Geometrically predictable scale-up from ZE5/ZE9/ZE12 micro extruders
Same modular barrel segments and screw-element system as the micro platform
Siemens S7-1500 control architecture consistent across all Three-Tec extruders
Available in cGMP and pharmaceutical-grade configurations
Full downstream integration with Three-Tec feeders, pelletizers, and film/fiber lines

03 / 04 — SPECIFICATIONS

Technical data

EXTRUSION
Screw diameters50 / 77 / 100 mm
Screw typeCo-rotating twin-screw
L/D ratioOn request
Max torqueOn request
Max pressureOn request
Max temperatureOn request
Throughput rangeOn request
CONTROL
PLCSiemens S7-1500
HMISiemens touch panel
COMPLIANCE
Contact material316L stainless
StandardscGMP optional
DIMENSIONS
FootprintOn request

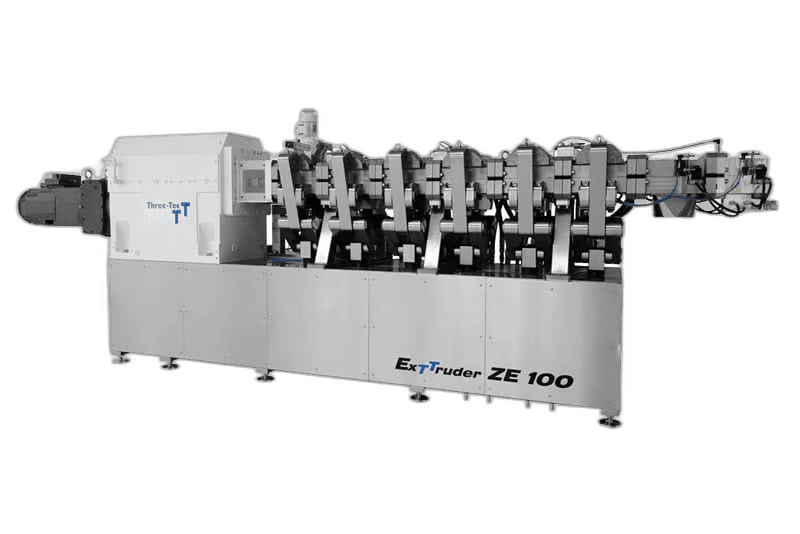

Three-Tec 100 mm twin-screw extruder — the largest production-scale system in the range
Fig. 02Three-Tec 100 mm twin-screw extruder — the largest production-scale system in the range

04 / 04 — PAIRS WITH

Complete the line.

Three-Tec ZE5 micro extruder — 5 mm co-rotating twin-screw with Siemens touchscreen control panel

Micro Extruders

Micro Extruder ZE5

Three-Tec ZE9 micro extruder — 9 mm co-rotating twin-screw system with Siemens PLC and stainless steel barrel

Micro Extruders

Micro Extruder ZE9

Three-Tec ZE12 micro extruder — 12 mm co-rotating twin-screw barrel with temperature control zones

Micro Extruders

Micro Extruder ZE12

Talk to an engineer about your formulation.
